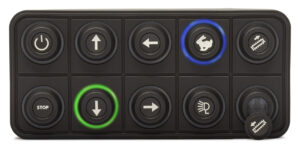

10 button CANBUS keypad

The Keypad Switch illumination LEDs can operate in the following modes as well as other colours (Green, Blue, Yellow, Cyan, Violet) as well as being able to adjust the main keypad backlight colour and brightness.

Green – Output is on and functioning normally
Blue – Output under-current fault has occurred
Red – Output over-current fault has occurred

Keypads are supplied with basic button inserts, however custom designs can be made for a small fee (please note requirements in original order)

CAN bus speed and keypad ID can also be configured (default: speed1000kbps, ID 0x21).

Watch a demo here of setup and configuration

General Features

• IP67/IP69K Waterproof Rating
• UV protection
• Vertical or Horizontal Mounting
• Reconfigurable Icon Inserts
• LED Backlit keys
• Global Backlight
• Deutsch DT04-4P Connector
• -40°C to +70°C Operating Temperature
• #10-32 Steel Mounting Studs
• 200g Weight
• High Chemical Resistance

Dimensions
