15 button CANBUS keypad

$730.00
Model Number: PKP-3500-SI
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
Your Price: $730.00
730.000
OUT OF STOCK until 7 - 10 days
A one-time price of $730.00 will be added to your order.
Categories: Blink Keypads
Manufacturer: Blink Marine
Facebook
Email
  • Description

15 button CANBUS keypad

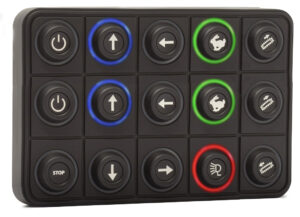

The Keypad Switch illumination LEDs can operate in the following modes as well as other colours (Green, Blue, Yellow, Cyan, Violet) as well as being able to adjust the main keypad backlight colour and brightness.

Green – Output is on and functioning normally
Blue – Output under-current fault has occurred
Red – Output over-current fault has occurred

Keypads are supplied with basic button inserts, however custom designs can be made for a small fee (please note requirements in original order)

CAN bus speed and keypad ID can also be configured (default: speed1000kbps, ID 0x21).

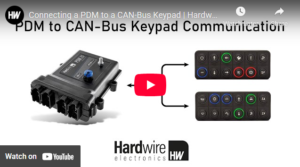

Watch a demo here of setup and configuration



General Features

  • IP67/IP69K Waterproof Rating
  • UV protection
  • Vertical or Horizontal Mounting
  • Reconfigurable Icon Inserts
  • LED Backlit keys
  • Global Backlight
  • Deutsch DT04-4P Connector
  • -40°C to +70°C Operating Temperature
  • #10-32 Steel Mounting Studs
  • 200g Weight
  • High Chemical Resistance

Dimensions

This image has an empty alt attribute; its file name is PKP3500dimensions.jpg
